San Ming offers various high quality vehicle siren horn speakers for police car, ambulance, fire truck and coast patrol boat. These models can be mounted in light bar speaker housing, on vehicle roof bar or behind vehicle grill. By properly matching the horn speaker with siren amplifier, a reinforcing and penetrating sound can be obtained during emergency occasions.

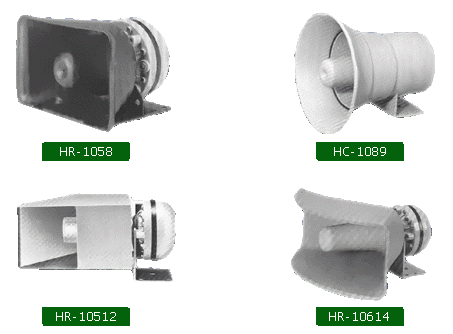

MODEL
SPECIFICATIONS
HR-1058
HR-10512
HC-1089
HR-10614
POWER
100 watts
100 watts
100 watts
100 watts
SOUND PRESSURE LEVEL
(100 watts at one eter)
125 dB
125 dB
128 dB
130 dB
FINISH
 Heavy Duty
ABS Resin
Baked Enamel
 Die Casting
Aluminium
Baked Enamel		 AP:Aluminium Painting
BC:Brass Chromed

Heavy Duty
ABS Resin
Baked Enamel
MOUNTING
 Enclosed
Light Bar
 Under hood
Behind Grill
Fender Well		 Roof Bar
Direct Mount		 Roof Bar
Direct Mount
DIMENSIONS
W x L x D
 51/8 X 81/8 X 67/8"
13 X 20.5 X 17.5 CM		 43/4 X 43/4 X 12"
12 X 12 X 30.5 CM		 83/4 X 83/4 X 91/2"
22.2 X 22.2 X 24.1 CM		 61/2X141/4X12"
16.5X36.2X30.5CM
WEIGHT
 91/2 Lbs
4.3 Kgs		 11 Lbs
5.0 Kgs		 AP:11 Lbs, 5.0 Kgs
BC:12 Lbs, 5.5 Kgs		 10 Lbs
4.5 Kgs

Specifications and models subject to chagne without notice.
